The John Ford Mixing Stage

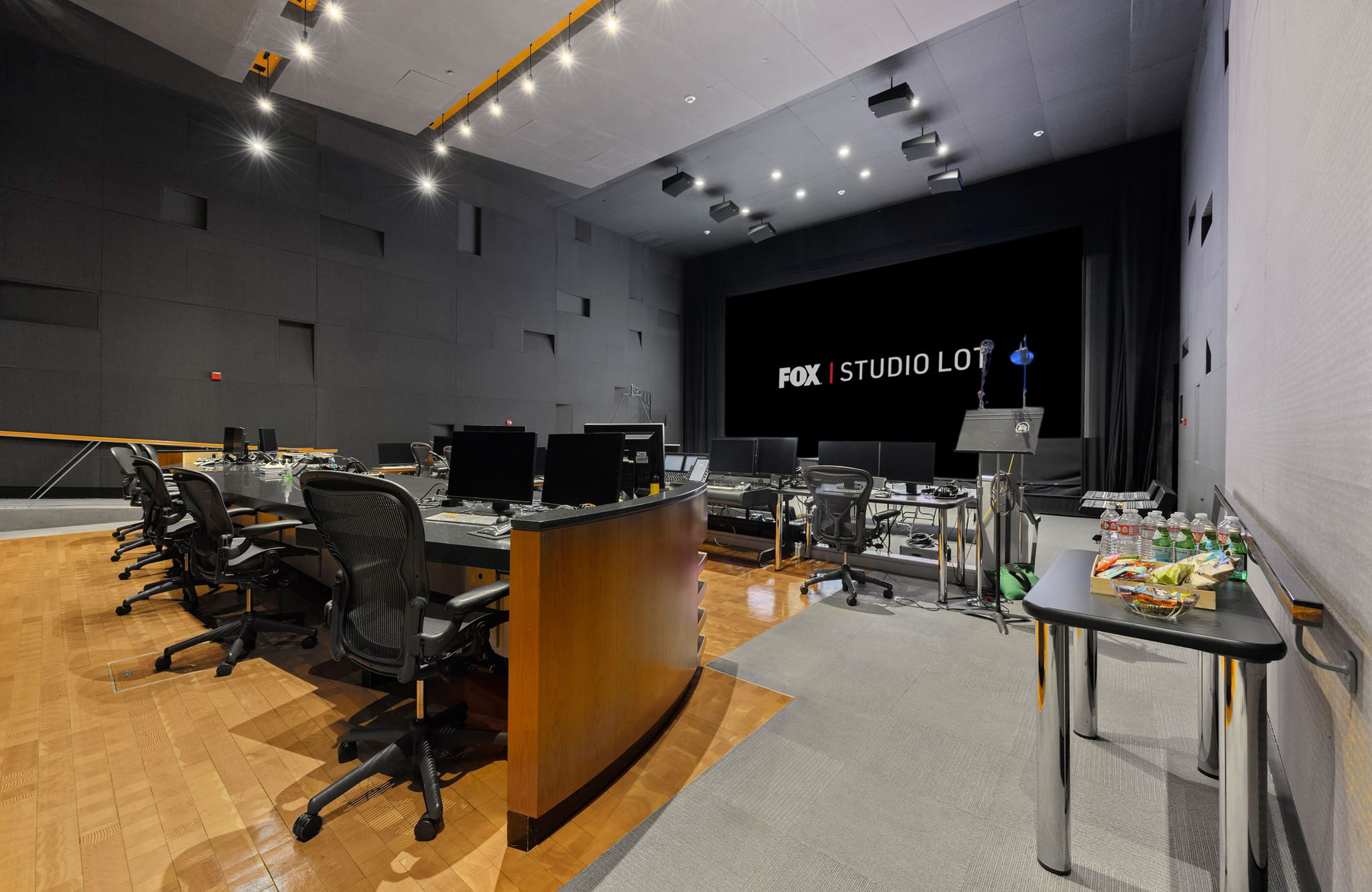

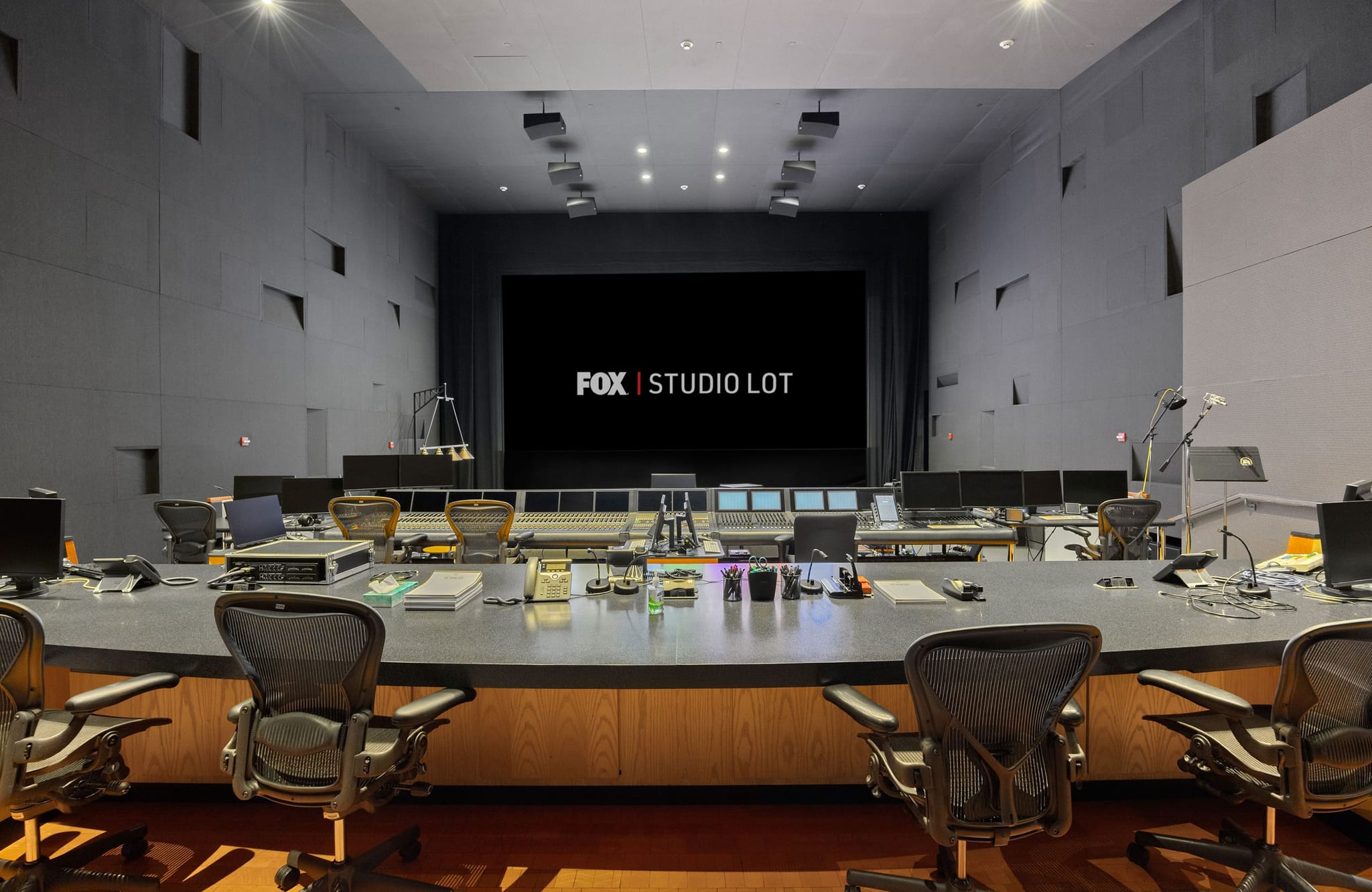

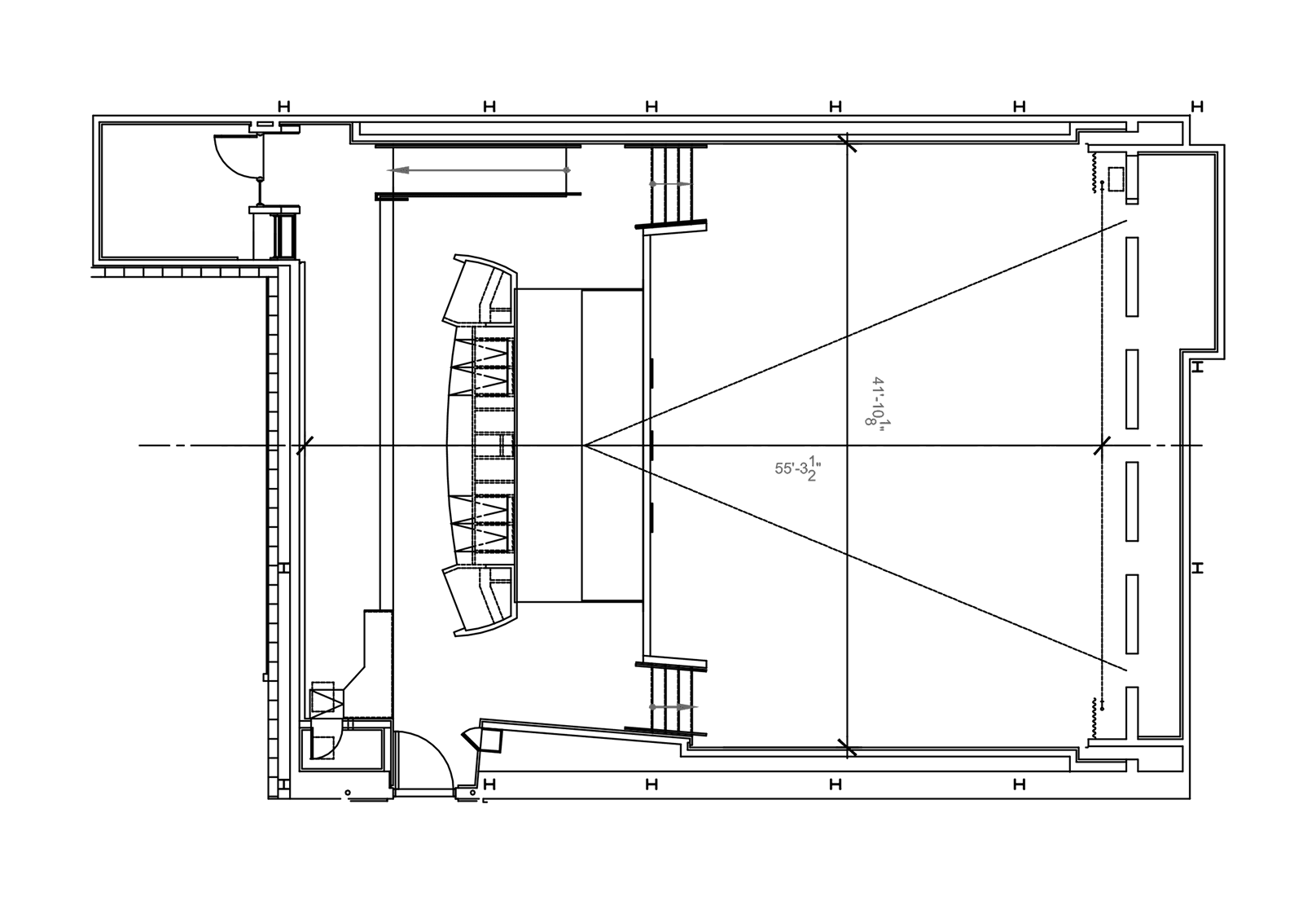

The John Ford Mixing Stage is one of the two flagship mixing stages within The Sound Department facility, designed to provide an exceptional environment for high-end theatrical sound mixing and audio post-production. Mirroring the scale and capabilities of its companion stage, the Howard Hawks Mixing Stage, the John Ford Mixing Stage offers a spacious, comfortable, and technologically advanced setting for projects of every size.

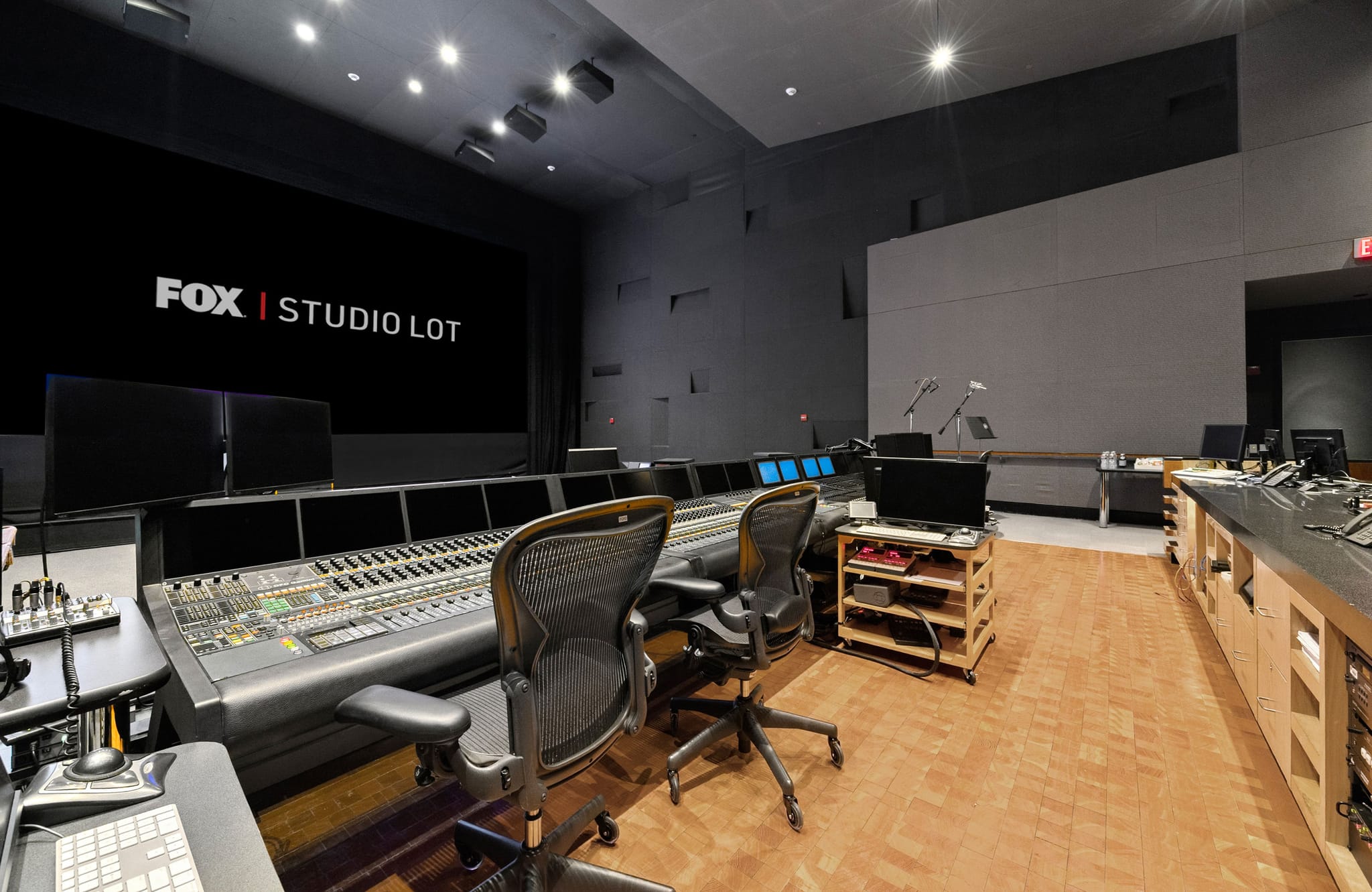

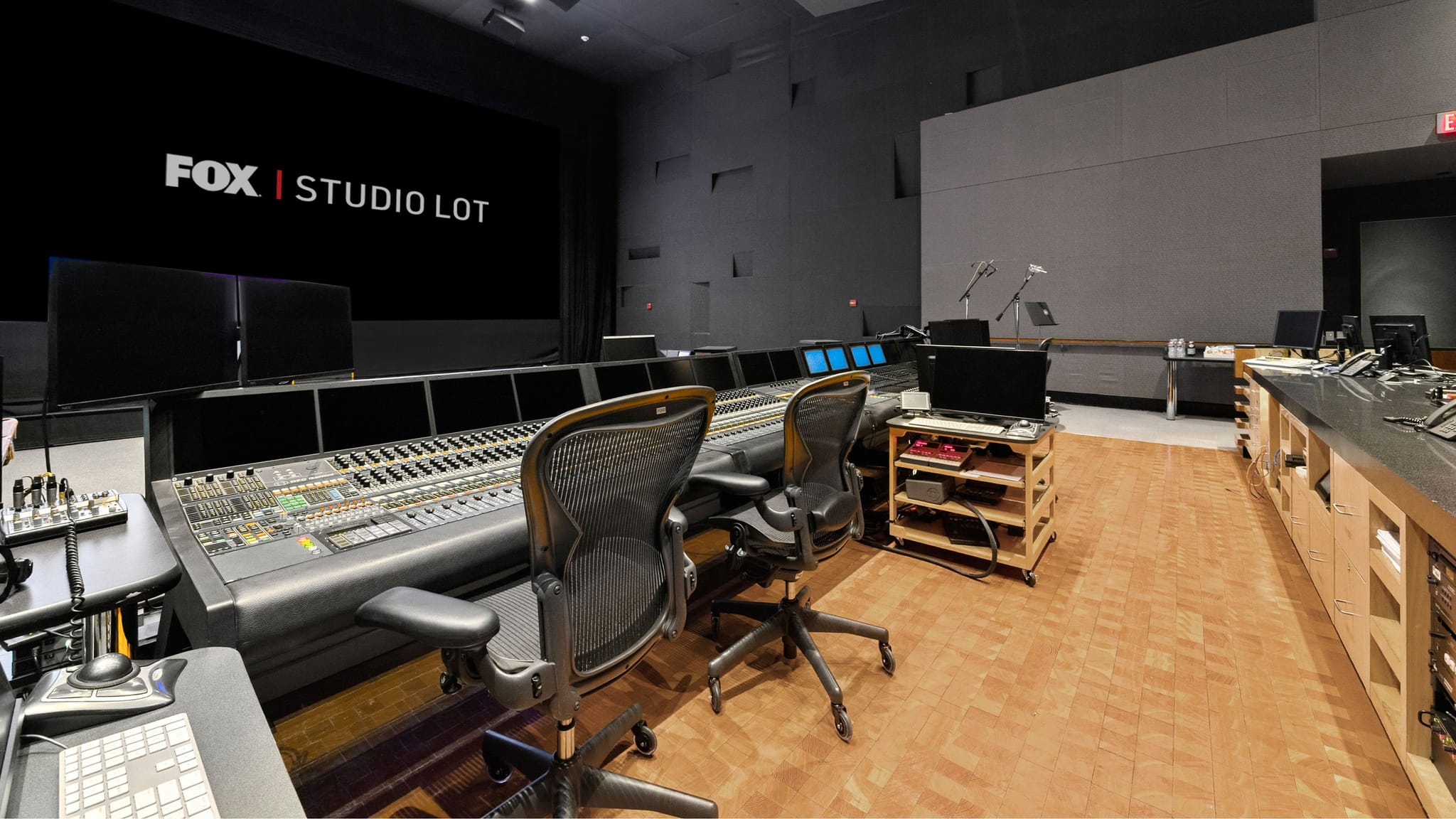

The stage features a powerful NEVE mixing console that serves as the centerpiece of the room, delivering the precision, flexibility, and sonic excellence required for today's most demanding productions. Its expansive footprint allows creative teams, filmmakers, producers, and studio personnel to work together comfortably throughout the mixing process.

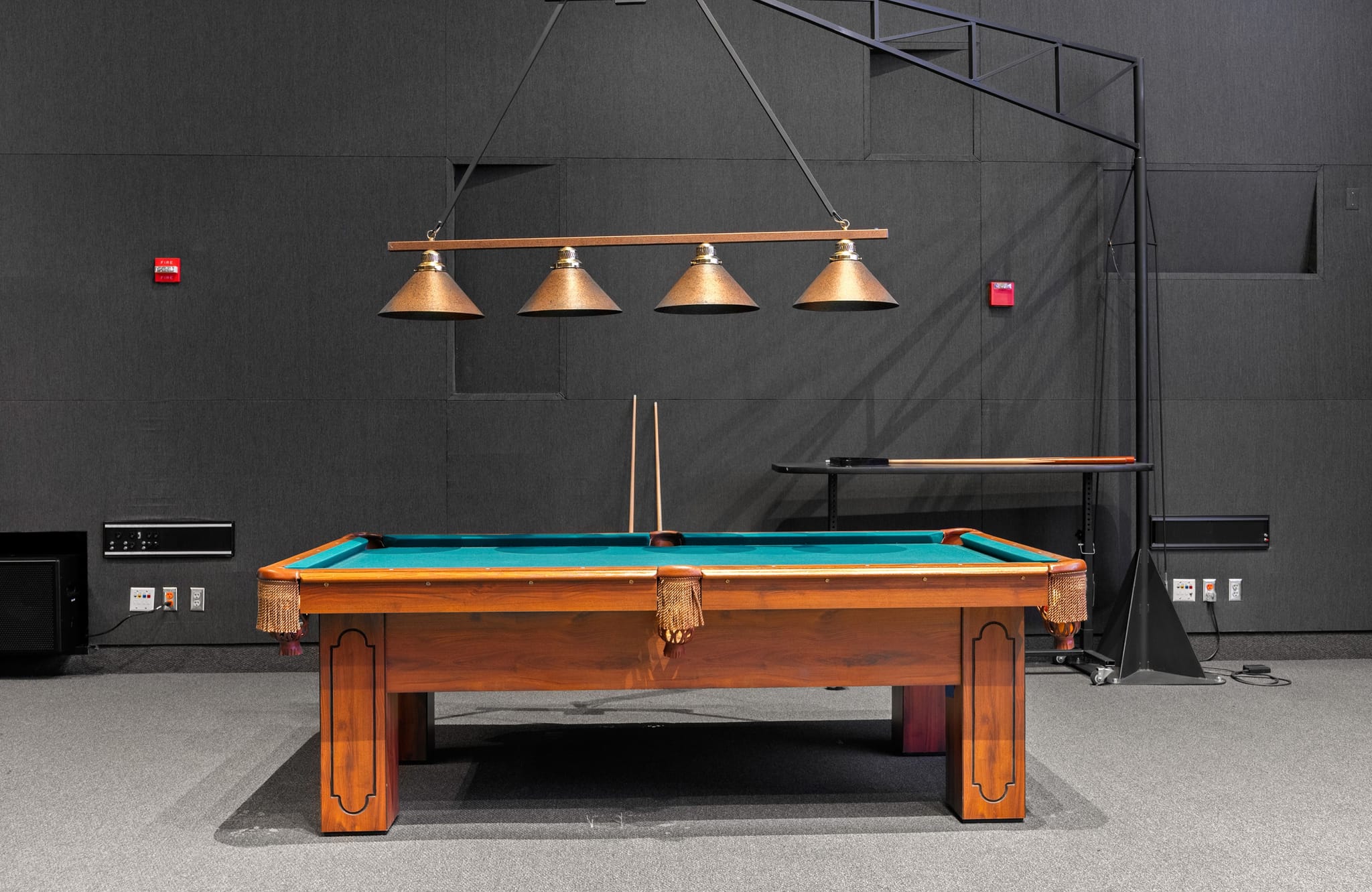

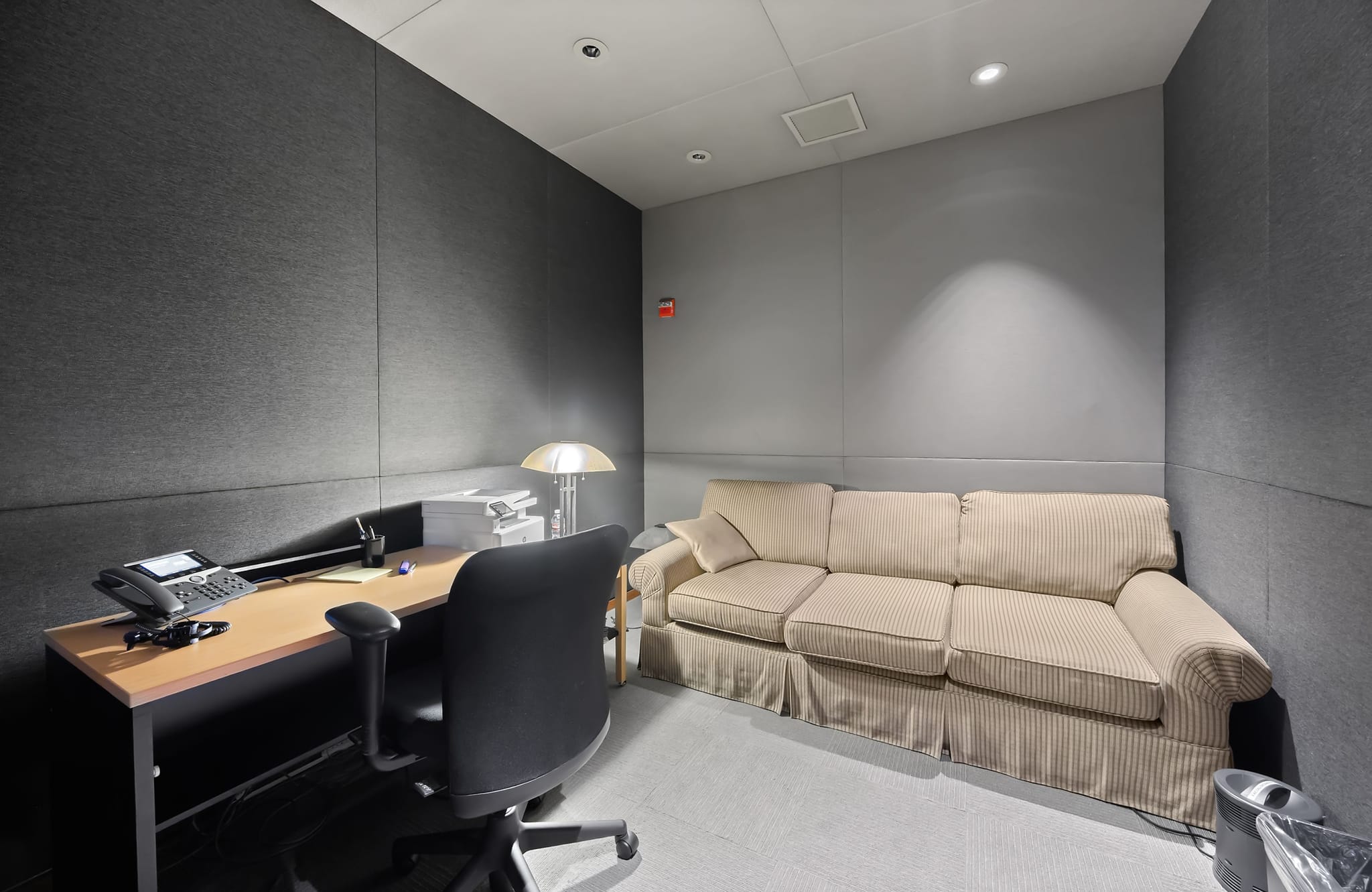

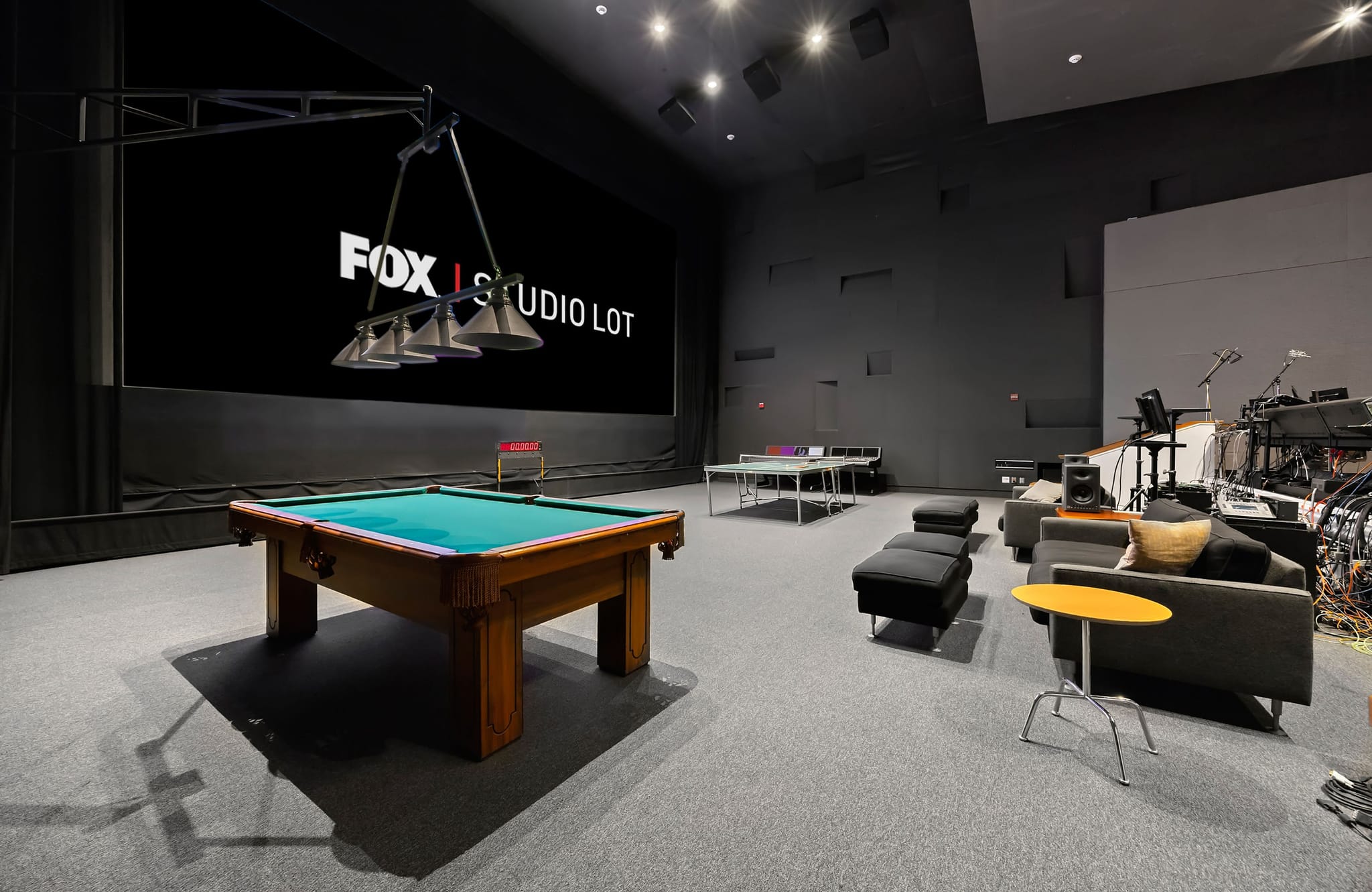

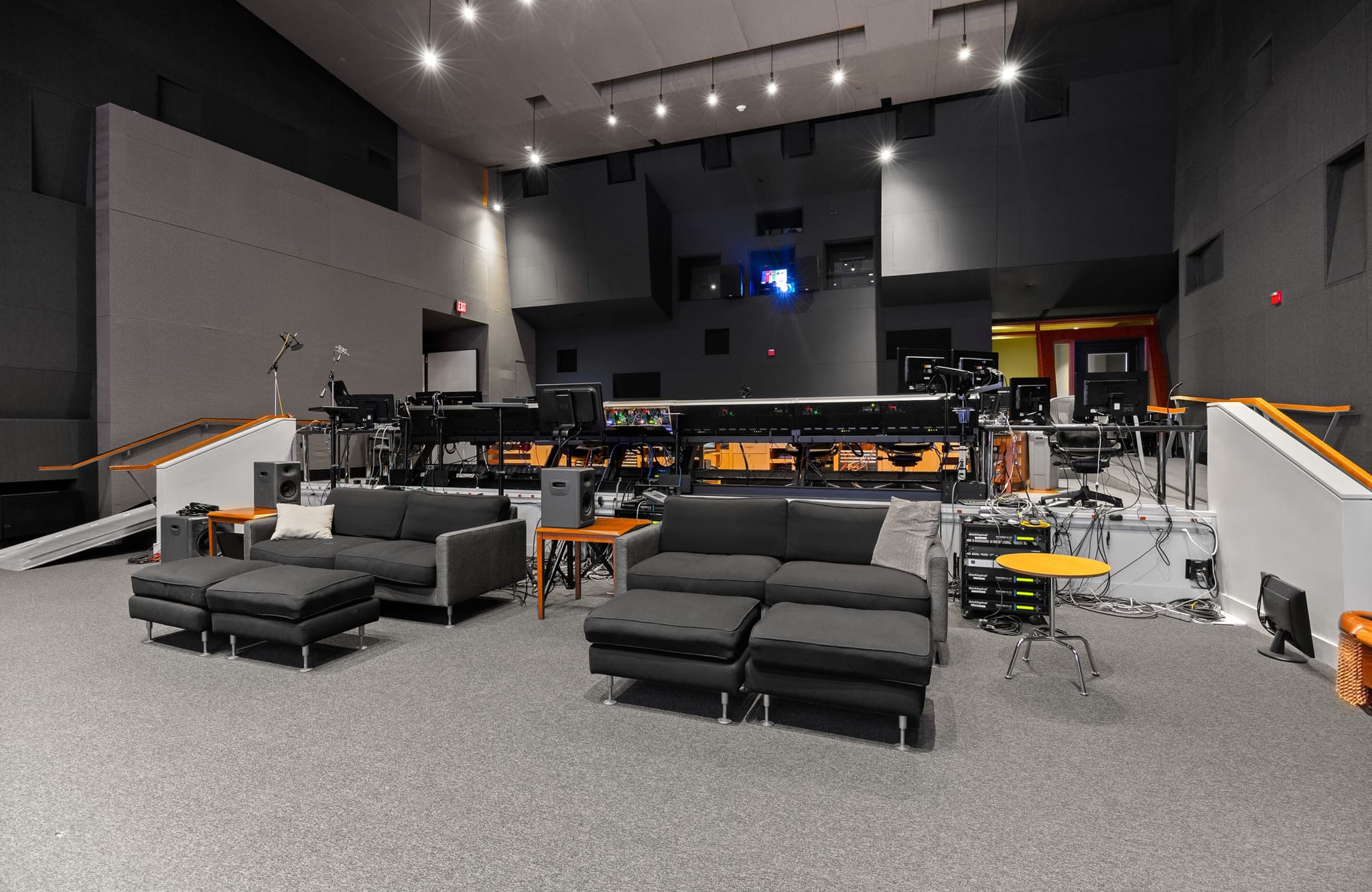

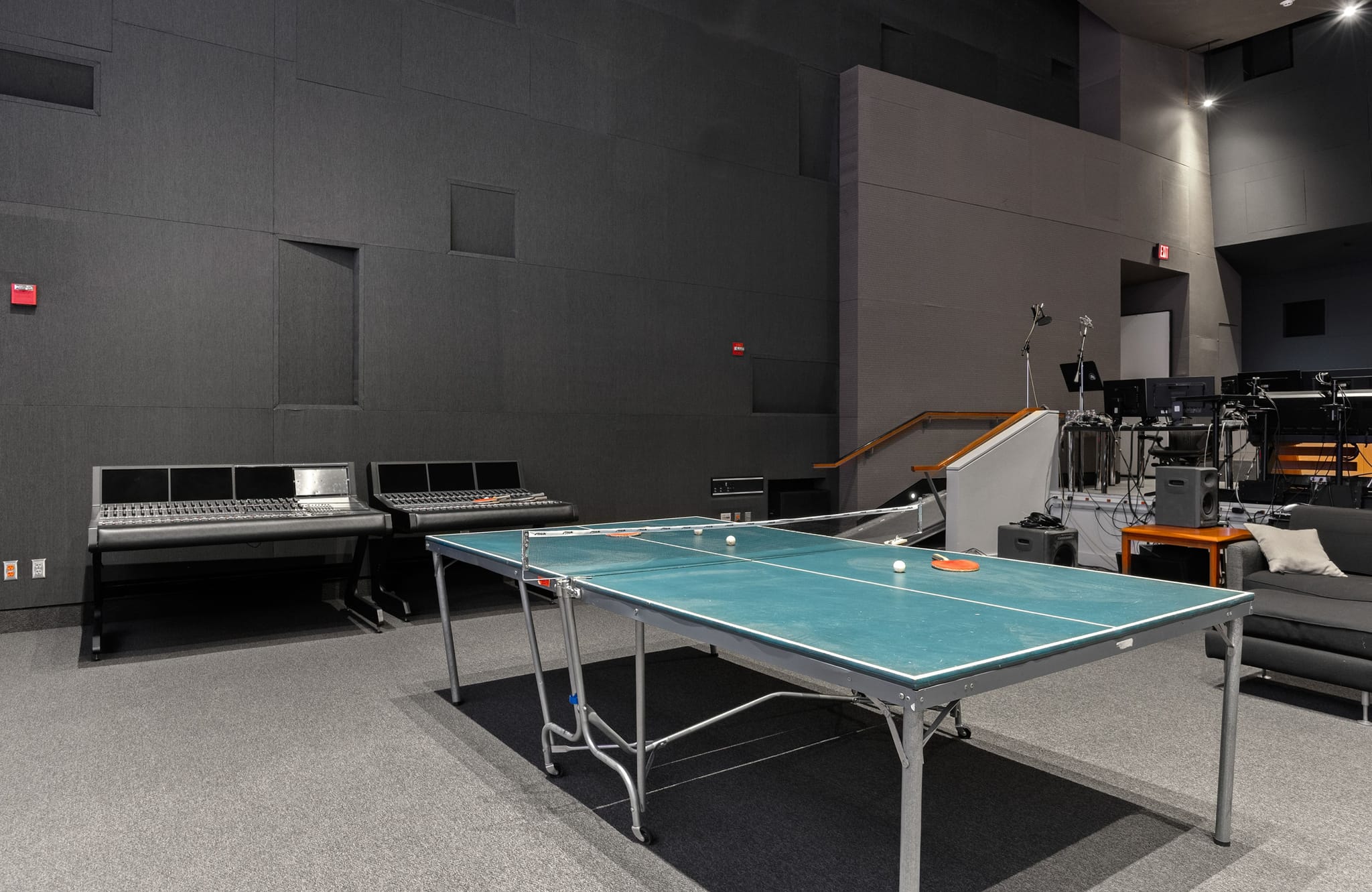

A private producer's office provides a dedicated workspace for clients, while the lounge area in front of the stage offers comfortable seating, a pool table, and plenty of room to relax during extended sessions. The thoughtfully designed space ensures that both productivity and comfort remain priorities throughout the project.
Built to support feature films, television productions, streaming content, and other large-format projects, the John Ford Mixing Stage is ideally suited for mixes intended for theatrical exhibition and premium viewing environments. Every session is supported by our experienced and highly talented sound engineers, who are committed to delivering outstanding results. From addressing technical requirements to adapting to evolving creative needs, our team provides the expertise and responsiveness necessary to keep every project running smoothly.

Details

MONITORING FORMATS:
5.1, 7.1, Dolby Atoms Cinema, SDDS, Auro 3D & IMAX.
B-CHAIN SPEC:
3-Way High Powered Screen Arrays with BMS Coaxial Compression Drivers, BGW M2200i Subwoofers, 56 x Meyer HMS-12 High-Power Surrounds, Meyer 500-HP Dolby Atmos Subwoofers, Dolby Lake & Lab.Gruppen Processors, Parasound & Crown Amplification. Meyer Acheron 100 IMAX Surround Speakers.=
DIGITAL MIXING CONSOLE:
AMS-Neve DFC-3D Gemini Consoles, Encore 3 Automation System, 1000 path Dual Engine Ultra Scale Processing Core, 12 Stems, 96 Fader Control Surface with LED TFT Displays.

Avid S6 M40 32-9-D Control Surfaces including Master Post Module, Joystick, Expand Knob and Automation Modules. Additional Floating Displays are available.
PRO TOOLS PLAYBACK:
5 Pro Tools v2020 HDX Systems, w/7,1 2019 MacPros 704 Total Output Channels.
PRO TOOLS RECORD:
3 Pro Tools v2020 HDX Systems, w/7,1 2019 MacPros 288 Total I/O Channels, may also be used for additional playback.
PRO TOOLS PLUGINS:
Extensive list of current plug-ins including, Altiverb 7XL, Speakerphone 2, Izotope RX7 Advanced, Waves Diamond, Fab Filters, Waves WNS, and several others.
OUTBOARD GEAR:
Lexicon 960, TC 6000, Lexicon 480s, Cedar DNS1000, Junger B42 Dynamics, DBX 120a Subharmonic Synthesizers.
PROJECTOR:
Christie CP2000-XB 2K Digital Cinema Projector.
VIDEO PLAYBACK:
Rhode & Schwarz Clipster-Play Digital Cinema Delivery System. Supports 2K Stereoscopic playback of DPX, TIFF, TGA & other uncompressed data formats as well as DCP, DNxHD, QuickTime and others. Also Pro Tools playback via AJA Kona 4 Video Card.
STAGETEC NEXUS AUDIO ROUTER:
4096 x 4096 I/O Matrix, Matrix 5 Control, Audio Mixing DSP, High Speed Fiber Infrastructure.
AUDIO STORAGE AREA NETWORK:
ZFS based iXSystems TrueNAS Secure High Speed Storage, 48 TB capacity, 10GbE Copper Connectivity. Apple Server for Editorial and Stage AFP 12 TB Shares.
STAGE EDITORIAL WORKSTATIONS:
5 Editorial Workstation Positions with Dual DVI Displays. Thinklogical VX80 KVM Router with individual Touch Screen Control providing Pro Tools CPU access with mouse sharing.
EDITORIAL ROOMS:
10 Private Editorial Rooms, all with audio, video, fiber and KVM tie lines to the stage.
